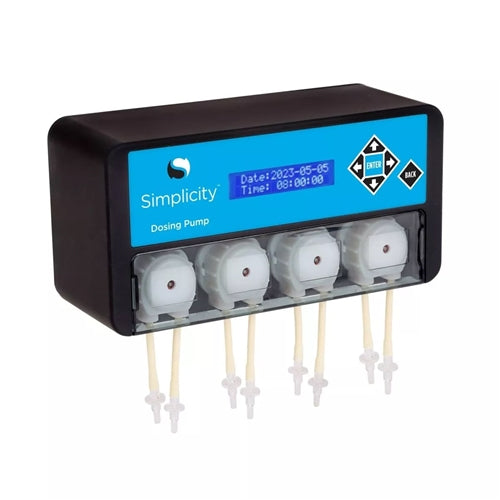

Simplicity 4-Channel Dosing Pump
Simplicity 4-Channel Dosing Pump
Please log in to see pricing.
The Simplicity Dosing Pump is an accurate, effective, and affordable liquid dosing solution. The four dosing heads offer high-precision liquid dosing combined with easy-to-use integrated controls. The compact, space-saving design can be flush mounted to a wall or placed on a shelf. The included pump head labels make identifying dosing solutions easy.
The Simplicity 4-Head Dosing Pump is also compatible with the Simplicity 2L Modular Dosing Container and the Simplicity 5L Modular Dosing Container.
Specifications:
The Simplicity 4-Head Dosing Pump is also compatible with the Simplicity 2L Modular Dosing Container and the Simplicity 5L Modular Dosing Container.
Specifications:
- 7.9" L x 3.0" W x 4.0" H
- Power Consumption: 7.5W
- Power Input: 12V DC
- Power Cord Length: 5 ft
- 3-year manufacturer prorated warranty
- Control Interval: From once per hour to once every 30 days
- Flow Rate: 50 mL per minute
- Maximum Head Pressure: 5 ft
- Accuracy: +/- 0.1 mL per 10 mL
- Dosing Volume: From 1 mL up to 9999 mL
- Simplicity 4-Head Dosing Pump
- Power Supply
- Pump Head Labels
- Measuring Cup
- Check Valves (5x)
- Mounting Screws (2x)
- Spare Pump Head
- Mounting Template
- F1 Dosing Pump
- Graduated cylinder
- Power adapter - Up to 4 - F1 Pumps
- PVC Tubing: ID*OD 3*5mm
